Toyota

Land Cruiser 70 Series Specifications

Troop Carrier

Troop Carrier
Single Cab Chassis

MANUAL DIESEL (RRP)
$65,880+ORC

MANUAL DIESEL WITH HIGH COUNTRY PACKAGE (RRP)
$68,380+ORC

Land Cruiser 70 Series Single Cab Chassis models form the backbone of Toyota’s legendary workhorse trucks.

LX Single Cab Chassis

MANUAL DIESEL (RRP)
$72,080+ORC

MANUAL DIESEL WITH HIGH COUNTRY PACKAGE (RRP)
$74,580+ORC

Built on a strong ladder frame chassis, these vehicles take a lot of punishment without complaint.

Double Cab Chassis

MANUAL DIESEL (RRP)
$69,880+ORC

MANUAL DIESEL WITH HIGH COUNTRY PACK (RRP)
$72,380+ORC

There are plenty of tough jobs requiring a whole team to be on site. The Double Cab Chassis Land Cruiser will carry 5 people and their gear anywhere.

LX Double Cab Chassis

MANUAL DIESEL (RRP)
$76,080+ORC

MANUAL DIESEL WITH HIGH COUNTRY PACKAGE (RRP)
$78,580+ORC

Needing 5 people at a remote site or out the back of the farm is no longer an issue with the LX Double Cab Chassis.

Troop Carrier

MANUAL DIESEL (RRP)
$76,880+ORC

MANUAL DIESEL WITH HIGH COUNTRY PACKAGE (RRP)
$79,380+ORC

Moving staff and their gear to distant off-road worksites? Land Cruiser Hardtop will easily carry 8 passengers in the rear.

LX Wagon

MANUAL DIESEL (RRP)
$79,780+ORC

MANUAL DIESEL WITH HIGH COUNTRY PACKAGE (RRP)
$82,280+ORC

At the head of the Land Cruiser 70 Series, the 5-door LX Wagon combines the creature comforts you would expect from a Toyota with the freedom to hunt out the best leisure spots New Zealand has to offer.

Engine

Land Cruiser 70 is renowned for reliable high performance whatever the job or working conditions – this engine provides the muscle needed to tackle the best, and worst, of New Zealand’s natural terrain.

Diesel, 4.5L, V8, 32-valve Double Overhead Cam (DOHC), with variable vane turbocharger, intercooler and common rail direct injection system.

  • Maximum power – 151kW at 3400rpm
  • Maximum torque – 430Nm at 1200rpm
  • Exhaust emission standard – Euro 4
  • Drive type – Part time 4-wheel drive
  • Fuel consumption - 11.5L/100km (combined ADR 81/01)
  • CO2 emissions - 304g/km (combined ADR 81/01)
  • Fuel tank capacity - Singel Cab Chassis 90L. Double Cab Chassis 130L

Diesel, 4.5L, V8, 32-valve Double Overhead Cam (DOHC), with variable vane turbocharger, intercooler and common rail direct injection system.

  • Maximum power – 151kW at 3400rpm
  • Maximum torque – 430Nm at 1200rpm
  • Exhaust emission standard – Euro 4
  • Drive type – Part time 4-wheel drive
  • Fuel consumption – 11.9L/100km (combined ADR 81/01)
  • CO2 emissions – 313g/km (combined ADR 81/01).
  • Fuel tank capacity - Troop carrier 180L. LX Wagon 130L

Transmission

Land Cruiser 70 offers a 5-speed manual transmission, part time 4-wheel drive with manual front hubs and a Limited Slip rear Differential (LSD). The low transfer ratio of 2.488 and high torque at idle allow very low speeds for controlled off-road manoeuvres and steep descents.

  • Part time 4-wheel drive with high-low ratio selection
  • Five-speed manual transmission
  • Manual front hubs are standard across the Land Cruiser 70 range – the preferred choice of many 4-wheel drive experts
  • Limited Slip rear Differential (LSD) with locking switch.

Optional High Country Pack

  • Front and rear differential locks.
    Note: The standard Limited Slip rear Differential (LSD) is negated when this option is selected.

Brakes and Suspension

Brakes

  • Brakes – Front – Power-assisted ventilated disc
  • Brakes – Rear – Power-assisted disc
  • Anti-lock Braking System (ABS).

Suspension

  • Suspension – Front – Coil spring rigid axle with low pressure gas filled shock absorbers and stabiliser bar
  • Suspension – Rear – Leaf spring rigid axle with low pressure shock absorbers.

Wheels

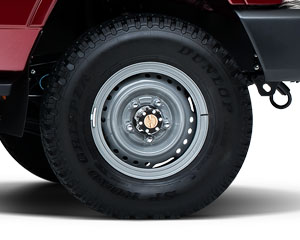

  • Standard wheels – 16” steel wheels
  • Tyres – 7.5 R16
  • Full size steel spare wheel

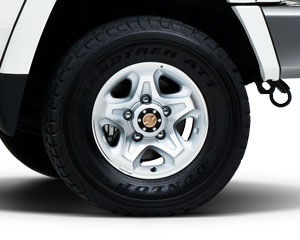

  • Standard wheels – Five-spoke 16” alloy wheels
  • Tyres – 265/70 R16
  • Full size steel spare wheel.
  • Standard wheels – 16” steel wheels
  • Tyres – 7.5 R16
  • Full size steel spare wheel.
  • Standard wheels – Five-spoke 16” alloy wheels
  • Tyres – 265/70 R16
  • Full size steel spare wheel.
  • Standard wheels – 16” steel wheels
  • Tyres – 7.5 R16
  • Full size steel spare wheel.
  • Standard wheels – Five-spoke 16” Alloy wheels
  • Tyres – 265/70 R16
  • Full size steel spare wheel.

Other Exterior Features

  • Front and rear towing hooks
  • Lockable fuel cap
  • Headlights – Halogen
  • Windscreen wipers – Washer linked with intermittent function.
  • Front design – Moulded front bumper, black front grille and air intake snorkel
  • Side design – Chrome exterior door handles, black exterior rear view mirrors and painted steel side steps
  • Rear design – Under-floor mounted spare wheel
  • Front design – Chrome plated front bumper, chrome plated front grille and black air intake snorkel
  • Side design – Chrome exterior door handles, chrome plated exterior rear view mirrors. Front over fenders and aluminium side steps
  • Rear design – Under-floor mounted spare wheel.
  • Front design – Moulded front bumper, black front grille and air intake snorkel
  • Side design – Chrome exterior door handles, black exterior rear view mirrors and aluminium side steps
  • Rear design – Under-floor mounted spare wheel.
  • Front design – Chrome plated front bumper, chrome plated front grille and black air intake snorkel
  • Side design – Chrome exterior door handles, chrome plated exterior rear view mirrors. Front over fenders and aluminium side steps
  • Rear design – Under-floor mounted spare wheel.
  • Front design – Moulded front bumper, black front grille and air intake snorkel
  • Side design – Chrome exterior door handles, black exterior rear view mirrors and powder coated black side steps
  • Rear design – Charcoal rear bumper with alloy step. Rear door mounted spare wheel.
  • Front design – Chrome plated front bumper, chrome plated front grille and black air intake snorkel
  • Side design – Body coloured front and rear over fenders, chrome exterior door handles, chrome plated exterior rear view mirrors. Front over fenders and aluminium side steps
  • Rear design – Chrome plated rear bumper, rear mounted spare wheel, 4 deck hooks

Interior Features and Convenience

  • Interior trims – Grey interior trim and vinyl floor covering.
  • Steering wheel and controls – Four-spoke urethane steering wheel with tilt and telescopic column
  • Manual front air conditioning
  • Idle up switch
  • Interior rear view mirror – Manual with day/night function
  • Front seats – Separate driver seat and front passenger fabric seat with slide and recline adjustments, front outer headrests with height adjustment
  • Storage – All variants have a front storage compartment and cup holder with 12V accessory power socket.
  • Front seats – Separate front seats with slide and recline adjustments
  • Power windows – Front power windows with driver’s side auto down
  • Wireless door locking
  • Storage – All variants have a front storage compartment and cup holder with 12V accessory power socket.
  • Front seats – Separate front seats with slide and recline adjustments
  • Rear seats – The Double Cab 3-person rear bench seat can be folded forward, providing easy access to useful storage for small items when the seats aren’t required
  • Central door locking
  • Storage – Centre console box with lid and removable tray, lockable front glove box.
  • Front seats – Separate front seats with slide and recline adjustments
  • Rear seats - The Double Cab 3-person rear bench seat can be folded forward, providing easy access to useful storage for small items when the seats aren’t required
  • Wireless door locking
  • Power windows – Front and rear with driver’s side auto down
  • Storage – Centre console box with lid and removable tray, lockable front glove box.
  • With seating for 11, Land Cruiser 70 Troop Carrier has the space and the grunt to carry the whole crew, and all the gear that travels with them
  • Front seats – Separate driver seat and front passenger fabric seat with slide and recline adjustments; front outer headrests with height adjustment
  • Rear seats - Transporting staff to off-road work locations is easy thanks to the hard wearing vinyl rear bench seats. These seats can carry up to 8 passengers, or fold away to reveal a large cargo space.
  • Seating for 5 and generous interior space make LX Wagon a candidate for off-road adventures
  • Front seats – Separate front seats with slide and recline adjustments, headrests with height adjustment
  • Rear seats – Transverse seat with tumble function for Wagon, outer rear headrests with height adjustment; fabric seat covers
  • Central door locking

Meters

  • Meter illumination control
  • Tachometer
  • Twin trip meters
  • Digital clock.
  • Digital clock with Multi-Information Display (MID) including outside temperature, stopwatch and alarm.
  • Digital clock with Multi-Information Display (MID) including outside temperature, stopwatch and alarm.
  • Digital clock with Multi-Information Display (MID) including outside temperature, stopwatch and alarm.

Audio

  • AM/FM radio and single disc in-dash MP3/WMA CD player. Auxiliary input jack and USB connector
  • Bluetooth handsfree phone and audio streaming capability, voice control for audio/phone, 3-line text display
  • Security system.

Safety & Security

Land Cruiser 70 has the strength of a tough steel body to protect you in the event of an accident. The full steel chassis makes for a strong, stable platform.

  • 3 Star ANCAP rating (rating applies to Single Cab variants only. Click here for more details)
  • Airbags– Driver and passenger front
  • Side door impact bars
  • Engine immobiliser.

Dimensions

  • Overall length – 5220mm
  • Overall width – 1790mm
  • Overall height – 1970mm
  • Wheelbase – 3180mm
  • Approach/departure angle – 38˚/29˚
  • Wading depth – 700mm
  • Seating capacity – 3
  • Cargo capacity – Not available. Toyota Genuine tray body available through your local Toyota Dealer
  • Kerb weight – 1990-2085kg
  • Gross vehicle weight – 3300kg
  • Minimum ground clearance – 235mm
  • Maximum towing capacity – Braked/unbraked –3500/750kg.

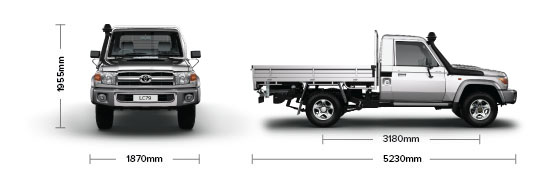

  • Overall length – 5230mm
  • Overall width – 1870mm
  • Overall height – 1955mm
  • Wheelbase – 3180mm
  • Approach/departure angle – 36˚/27˚
  • Wading depth – 700mm
  • Seating capacity – 2
  • Cargo capacity – Not available. Toyota Genuine tray body available through your local Toyota Dealer
  • Kerb weight – 2000-2090kg
  • Gross vehicle weight – 3300kg
  • Minimum ground clearance – 235mm
  • Max towing capacity – Braked/unbraked –3500/750kg.
  • Overall length – 5220mm
  • Overall width – 1790mm
  • Overall height – 1960mm
  • Wheelbase – 3180mm
  • Approach/departure angle – 38˚/29˚
  • Wading depth – 700mm
  • Seating capacity – 5
  • Cargo capacity – Not available. Toyota Genuine tray body available through your local Toyota Dealer
  • Kerb weight – 2180-2230kg
  • Gross vehicle weight – 3300kg
  • Minimum ground clearance – 235mm
  • Maximum towing capacity – Braked/unbraked –3500/750kg.

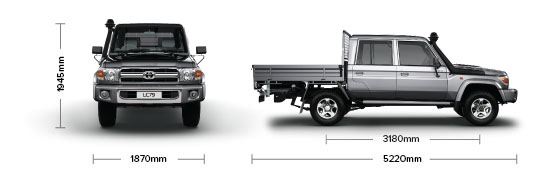

  • Overall length – 5220mm
  • Overall width – 1870mm
  • Overall height – 1945mm
  • Wheelbase – 3180mm
  • Approach/departure angle – 36˚/27˚
  • Wading depth – 700mm
  • Seating capacity – 5
  • Cargo capacity – Not available. Toyota Genuine tray body available through your local Toyota Dealer
  • Kerb weight – 2180-2230kg
  • Gross vehicle weight – 3300kg
  • Minimum ground clearance – 235mm
  • Maximum towing capacity – Braked/unbraked –3500/750kg.

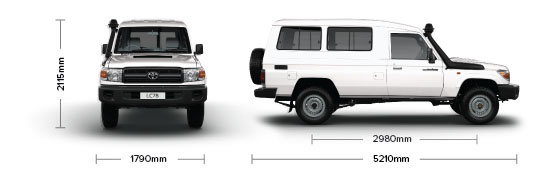

  • Overall length – 5210mm
  • Overall width – 1790mm
  • Overall height – 2115mm
  • Wheelbase – 2980mm
  • Approach/departure angle – 38˚/25˚
  • Wading depth – 700mm
  • Seating capacity – 11
  • Cargo capacity – Length/width/height – 2085/1170/1265mm
  • Kerb weight – 2245-2355kg
  • Gross vehicle weight – 3300kg
  • Minimum ground clearance – 235mm
  • Maximum towing capacity – Braked/unbraked –3500/750kg.

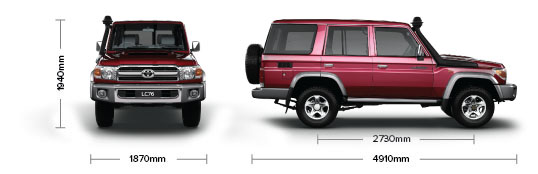

  • Overall length – 4910mm
  • Overall width – 1870mm
  • Overall height – 1940mm
  • Wheelbase – 2730mm
  • Approach/departure angle – 36˚/23˚
  • Wading depth – 700mm
  • Seating capacity – 5
  • Cargo capacity – Length/width/height – 940/1525/1115mm
  • Kerb weight – 2190-2260kg
  • Gross vehicle weight – 3000kg
  • Minimum ground clearance – 230mm
  • Maximum towing capacity – Braked/unbraked – 3500/750kg.

Available colours

Silver Pearl

Silver Pearl

French Vanilla

French Vanilla

Midnight Blue

Midnight Blue

Vintage Gold

Vintage Gold

Merlot Red

Merlot Red

Graphite

Graphite
