Corolla Hatch Specifications

Levin SX

Levin SX
GX

GX

MANUAL PETROL RSP

$27,390+ORC

CVT PETROL RSP

$28,990+ORC

The selection of soft touch finishes and fabrics are impressively inviting in the GX Hatch. GX drivers have a choice of transmission.

GLX

GLX

CVT PETROL RSP

$30,890+ORC

Added touches of flair, more technology and distinctive finishes make the Corolla Hatch GLX an attractive option for drivers seeking more.

Levin SX

CVT PETROL RSP

$33,390+ORC

The Corolla Levin SX brings with it a sportier look both inside and out and higher specification levels.

Levin ZR

CVT PETROL RSP

$37,390+ORC

CVT PETROL WITH PANORAMA ROOF OPTION RSP

$39,190+ORC

Levin ZR is Corolla’s benchmark for luxury. From leather to lights, never before has a Corolla Hatch had such impressive specifications.

MECHANICAL SPECIFICATIONS

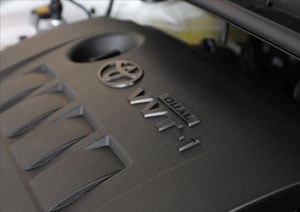

Engine and Drive

Petrol, 1.8L, 4 cylinder, in-line, 16 valve Double Over-head Cam (DOHC) with Dual Variable Valve Timing-intelligent (VVT-i) and Electronic Fuel Injection (EFI).

  • Maximum power – 103kW at 6400rpm
  • Maximum torque – 173Nm at 4000rpm
  • Drive type ­– Front wheel drive

  • Fuel economy – Manual 6.7L/100km. CVT 6.1L/100km (combined ADR 81/02)
  • CO2 emissions  – Manual 156g/km (combined ADR 79/04). CVT 143g/km (combined ADR 79/04)
  • Exhaust emission standard – Euro 5
  • Fuel economy – 6.1L/100km (combined ADR 81/02)
  • CO2 emissions  – 143g/km (combined ADR 79/04)
  • Exhaust emission standard – Euro 5
  • Fuel economy – 6.1L/100km (combined ADR 81/02)
  • CO2 emissions  – 143g/km (combined ADR 79/04)
  • Exhaust emission standard – Euro 5
  • Fuel economy – 6.1L/100km (combined ADR 81/02)
  • CO2 emissions  – 143g/km (combined ADR 79/04)
  • Exhaust emission standard – Euro 5

Transmission

  • The GX comes in both 6-speed manual transmission and 7-speed CVT transmission. The Continuously Variable Transmission (CVT) has 7-Speed Sport Sequential Manual Mode, Sport Mode, Acceleration and Deceleration Timing Control, Uphill/Downhill Shift Control and Lock-up Control. The CVT transmission incorporates speed ratio control logic, to respond instantly to driver intentions, giving you a smoother, more intuitive drive
  • A wonderfully smooth and seamless 7-step Continuously Variable Transmission (CVT)
  • Sport mode, uphill/downhill shift control and lock-up control

Seamless 7-step Continuously Variable Transmission (CVT)

BRAKES AND SUSPENSION

  • Front brakes – Power-assisted ventilated disc
  • Rear brakes – Power-assisted solid disc
  • Anti-lock Braking System (ABS)Brake Assist (BA)Electronic Brake-force Distribution (EBD)Vehicle Stability Control (VSC) and Traction Control (TRC)with on/off switch, Hill-start Assist Control (HAC)
  • Front suspension – MacPherson strut and stabiliser bar
  • Rear suspension – Torsion beam

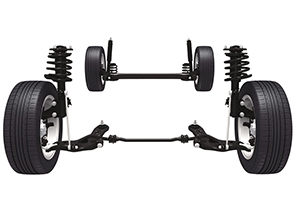

Corolla Hatch suspension

WHEELS

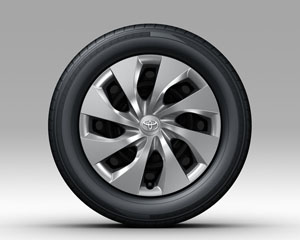

Corolla Hatch Wheel
  • Standard wheels – 8-spoke 16” steel wheels
  • Tyres are 205/55 R16
  • Temporary spare wheel

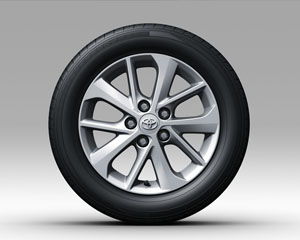

Corolla Hatch Wheel
  • Standard wheels – 10-spoke 16” alloy wheels
  • Tyres are 205/55 R16
  • Temporary spare wheel

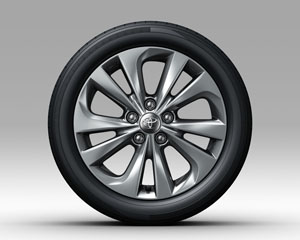

Corolla Hatch Wheel
  • Standard wheels – 10-spoke 17” alloy wheels
  • Tyres are 215/45 R17
  • Temporary spare wheel
Corolla Hatch Wheel
  • Standard wheels – 10-spoke 17” alloy wheels
  • Tyres are 215/45 R17
  • Temporary spare wheel

OTHER EXTERIOR FEATURES

  • Front Design – Front and rear air spats
  • Side Design – Outside mirrors with side indicator lights and electric adjustment
  • Rear Design – Aero-stabilising fins on rear combination lamps and outer mirrors
  • Integrated rear spoiler
  • Windscreen wipers - Variable intermittent and mist functions
Corolla Hatch exterior
  • Front Design - Body coloured front bumper, upper grille with 2 x chrome plated horizontal accents from centre emblem to the headlights, matte black horizontal grille. Piano black lower grille with silver painted accent
  • Rear Design – Body coloured rear bumper with black lower garnish and a piano black reflex refector bezel. Single exhaust
  • Headlights - Halogen with manual levelling
  • Front Design - Body coloured front bumper, upper grille with 2 x chrome plated horizontal accents from centre emblem to the headlights, matte black horizontal grille. Piano black lower grille, chrome plated lower grille bar and piano black fog lamp bezel
  • Rear Design – Rear bumper has a chrome plated lower floating bar, black lower garnish and a piano black reflex refector bezel. Single exhaust
  • Headlights - Halogen with manual levelling
  • Rear privacy glass adds to the sleek look of the GLX while providing protection from the heat of direct sunlight
  • Front Design - Body coloured front bumper, single piano black horizontal accent from centre emblem to the headlights with piano black honeycomb grille. Black hexagon lower centre grille with piano black surround. Outer side bezels with black honeycomb grille and piano black surround
  • Side Design – Outside mirrors include heater and auto retract functions
  • Rear Design - Rear bumper has a piano black lower centre rear diffuser, body coloured rear under spoiler. Single exhaust
  • Headlights - Halogen with manual levelling and light control system (auto on/off)
  • Rear privacy glass adds to the sleek look of the Levin SX while providing protection from the heat of direct sunlight
  • Body coloured front bumper, single piano black horizontal accent from centre emblem to the headlights with piano black honeycomb grille. Black hexagon lower centre grille with piano black surround. Outer side bezels with black honeycomb grille with piano black surround
  • Side Design – Outside mirrors include heated mirrors and auto retract functions. Chrome door belt moulding
  • Rear Design ­– Rear bumper has a piano black lower centre rear diffuser, Body coloured rear under spoiler. Single exhaust
  • Headlights – LED with manual levelling and light control system (auto off). LED daytime running lights with LED line guide. Piano black ornamentation on front fog lights
  • Panorama Roof Option – Made from special dark grey laminated glass to reduce glare and heat, the optional Panorama roof on Levin ZR increases light and opens up the view for both front and rear occupants to enjoy. A rolling sunshade with anti-jam protection can be fully, or partially closed

INTERIOR FEATURES AND CONVENIENCE

Inside, you're immediately struck by the premium Corolla interior. This comes from a multitude of refinements, not least of which is the black interior colour scheme, with matte texture. And yes, it's as comfortable as it is easy on the eye.

  • Rear seats - 60/40 split folding, left and right release levers and centre armrest with cup holders
  • Storage - Centre console box, door pockets with bottle holders, glove box with lamp, front storage tray and overhead sunglass holder. Accessory box in lower instrument panel has horizontal sliding lid with accessory connector, USB/AUX connections and phone storage. Luggage area with removable parcel tray that slots behind rear seats

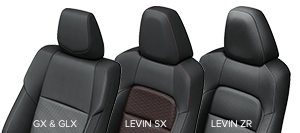

Corolla Hatch seats
  • Interior trims - Black and grey pattern fabric seat material with contrasting white stitching. Molded fabric assist grip and silver painted door handles
  • Steering wheel and controls - 3-spoke genuine leather with leather grain textured base section with satin chrome-plated ornamentation. Includes cruise control, audio and phone switches. Tilt and telescopic adjustments
  • Front seats – Bucket seats with slide, recline functions and drivers vertical height adjustment
  • Instrument panel - Black triangle style ornament panel, soft padded upper section with leather-like grain texture. Silver brushed metal style accents on audio surrounds, air vents and a piano black shift lever surround with satin chrome-plated ornamentation
  • Air Conditioning - Manual with dial type controls and pollen filter
  • Interior trims - Black and grey pattern fabric seat material with contrasting white stitching. Molded fabric assist grip and silver painted door handles
  • Steering wheel and controls - 3-spoke genuine leather with leather grain textured base section with satin chrome-plated ornamentation. Includes cruise control, audio and phone switches. Tilt and telescopic adjustments
  • Genuine leather gear lever with a synthetic leather shift lever boot
  • Front seats – Bucket seats with slide, recline functions and drivers vertical height adjustment
  • Instrument panel - Black triangle style ornament panel, soft padded upper section with leather-like grain texture. Silver brushed metal style accents on audio surrounds, air vents and a piano black shift lever surround with satin chrome-plated ornamentation
  • Air Conditioning - Manual with dial type controls and pollen filter
  • Interior trims - Black and orange pattern fabric seat material with contrasting orange stitching. Molded fabric assist grip and silver painted door handles
  • Steering wheel and controls - 3-spoke genuine leather with leather grain textured base section with satin chrome-plated ornamentation. Includes paddle shifters, cruise control, audio, phone and display switches. Tilt and telescopic adjustments
  • Genuine leather gear lever with a synthetic leather shift lever boot
  • Front seats – Sports style with slide and recline functions with driver’s vertical height adjustment
  • Instrument panel – Soft padded ornament panel and soft padded upper section with leather-like grain texture. Silver metal style accents on audio surrounds, air registers and gear lever
  • Air Conditioning – Automatic dual zone climate control with illuminated toggle switches for temperature, fan and mode. Satin-chrome plated ornamentation and switch illumination. Includes pollen filter
  • Interior trims - Genuine black leather seats with genuine leather and synthetic leather side bolsters. Molded fabric assist grip and silver painted door handles
  • Steering wheel and controls - 3-spoke genuine leather with leather grain textured base section with satin chrome-plated ornamentation. Includes paddle shifters, cruise control, audio, phone and display switches. Tilt and telescopic adjustments
  • Genuine leather gear lever with a synthetic leather shift lever boot
  • Front seats – Sports style with heaters, slide and recline functions. Driver’s seat with power lumbar support and vertical height adjustment
  • Instrument panel - Black wave style ornament panel and soft padded upper section with leather-like grain texture. Silver metal style accents on audio surrounds, air registers and gear lever
  • Air Conditioning – Automatic dual zone climate control with illuminated toggle switches for temperature, fan and mode. Satin-chrome plated ornamentation and switch illumination. Includes pollen filter

METERS & GAUGES

  • 3x ring style with speedometer, tachometer, fuel gauge and LCD Multi-Information Display (MID)
  • Multi-Information Display (MID) with average fuel consumption, cruising range, Eco driving indicator zone display (CVT only) and temperature display



  • 2x ring style with speedometer, tachometer, fuel gauge, meter illumination control sensor and a large Multi-Information Display (MID)
  • Multi-Information Display (MID) with current and average fuel consumption, cruising range, average vehicle speed, driving time, Eco driving indicator zone display and outside temperature display

AUDIO

Audio - 6.1” touchscreen display audio with radio, single disc CD player, AUX port, USB connection, Bluetooth handsfree phone capability, audio streaming and phone book access capability. Six speakers.

Audio - 7” touchscreen display audio with radio, single disc CD player, AUX port, USB connection, Bluetooth handsfree phone capability and audio streaming, phone book, SMS and email capability, voice recognition. Six speakers.

Audio - 7” touchscreen display audio with radio, single disc CD player, AUX port, USB connection, Bluetooth handsfree phone capability and audio streaming, phone book, SMS and email capability, voice recognition. Satellite navigation including SUNA TrafficSix speakers.

SAFETY & SECURITY

  • 5 star ANCAP safety rating
  • Airbags – Driver and passenger front, front side, front/rear curtain shield and driver’s knee
  • Engine immobiliser
  • Child seat fixing points – 2 x ISOFIX, 3 x tether anchors. Child proof rear door locks
  • Seat belts – Front – 3-point, Emergency Locking Retractors (ELR), pre-tensioners and force limiters. Height adjustable seat belt anchors
  • Seat belts – Rear – 3-point, 3 x Emergency Locking Retractors (ELR)
  • Wireless central door locking
  • Reversing camera with static backing guide lines
  • Smart key system with front doors and luggage door touch sensors.
  • Horn alarm

DIMENSIONS

  • Overall length: 4330mm
  • Overall width: 1760mm
  • Overall height: 1475mm
  • Wheelbase: 2600mm
  • Luggage capacity: 360L
  • Gross vehicle weight: 1805kg
  • Towing capacity - unbraked/braked: 450kg/1300kg
Corolla Hatch
  • Kerb weight - Manual – 1250kg-1255kg
  • Kerb weight - CVT – 1270kg- 1275kg

Colours

GX is not available in Crystal Pearl, Inferno and Citrus

  • Kerb weight - CVT – 1275kg- 1310kg

Colours

GLX is not available in Inferno and Citrus

  • Kerb weight - CVT – 1275kg- 1310kg
  • Kerb weight - CVT – 1275kg- 1310kg

Available colours

Glacier White

Glacier White

Silver Pearl

Silver Pearl

Ink

Ink

Blue Gem

Blue Gem

Wildfire

Wildfire

Crystal Pearl

Crystal Pearl

Inferno

Inferno

Citrus

Citrus
